SPECIFICATIONS

Brand Name: EARUELETRIC

Hign-concerned Chemical: None

Origin: Mainland China

DIY Supplies: ELECTRICAL

Measuring Energy Range: 99999.9

Display Type: LCD

Output Voltage: 230V AC

Model Number: DDS662

Certification: none

Power Supply: AC

Phase: single phase

Rated Voltage: 230V

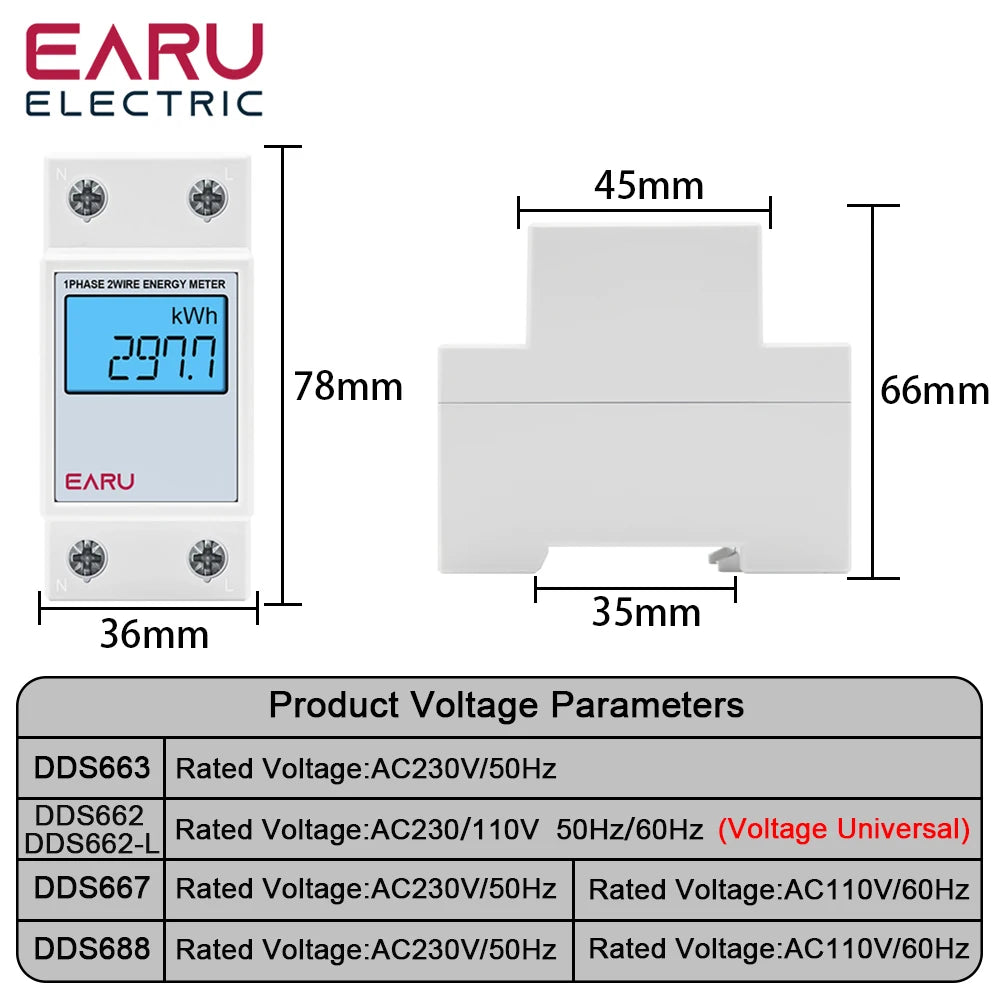

Dimensions: 78*65*35mm

Operating Temperature: -10 to 50C

Accuracy Class: ±1

Max Operating Current: 50A - 79A

Display 1: Total Energy kWh

Display 2: Temporary kWh

Display 3: Voltage

Display 4: Current

Model 1: DDS667

Model 2: DDS668

Model 3: DDS663

Rated working valtage: AC 110V

Choice: yes

semi_Choice: yes

Features:

DDS662 DDS662-L AC220V 50Hz/60Hz   AC110V 50Hz/60Hz

DDS663  DDS667 DDS668 AC220V/50Hz   AC110V/60Hz

Maximum current: 60/80A

Pulse frequency: 1000imp / kwh/1600imp / kwh

Pulse LED indicates working of meter.

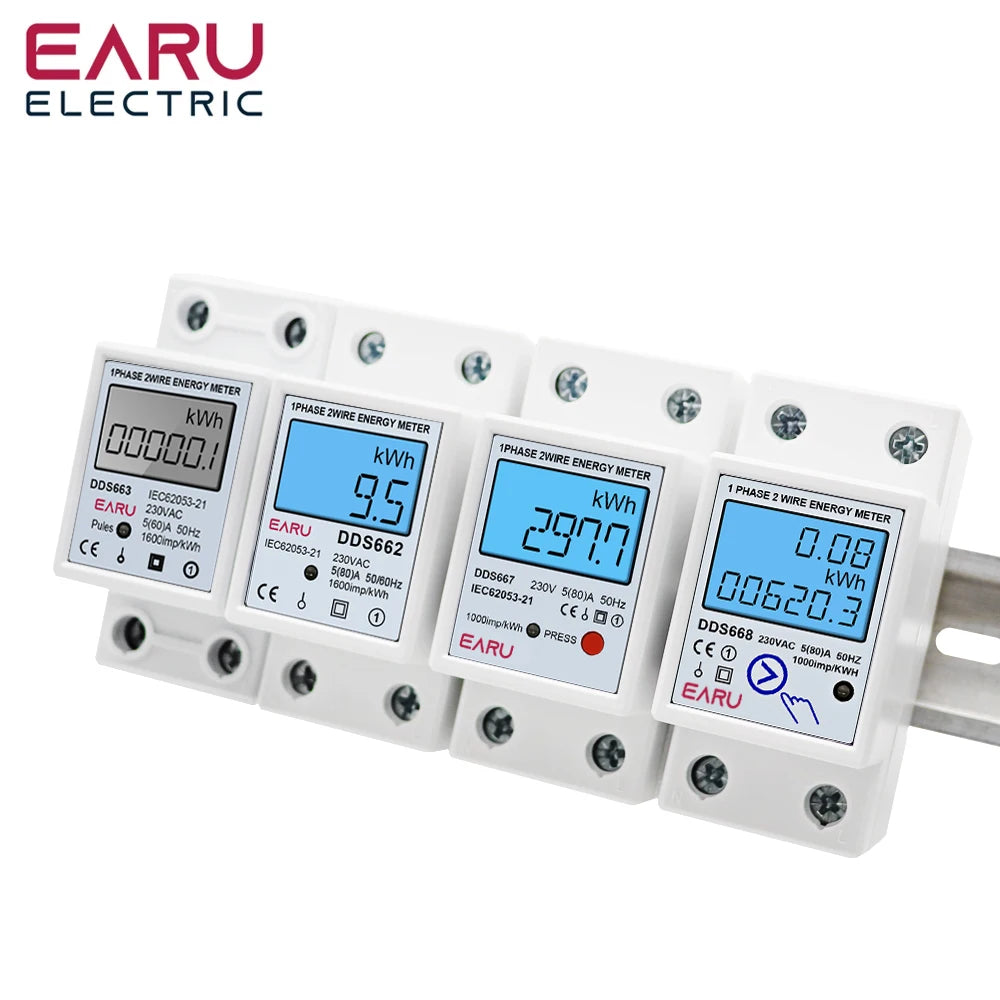

35mm din rail installation

Wiring method: top input and bottom output or top output bottom input

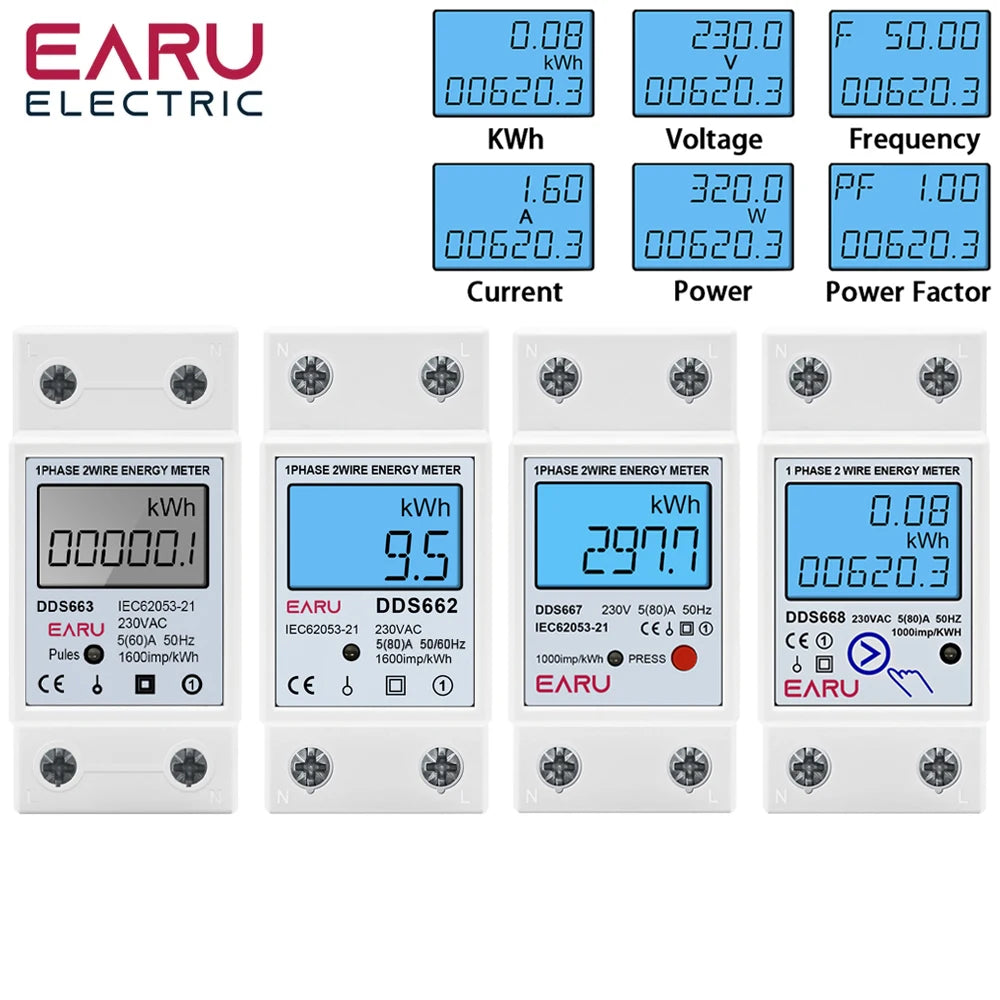

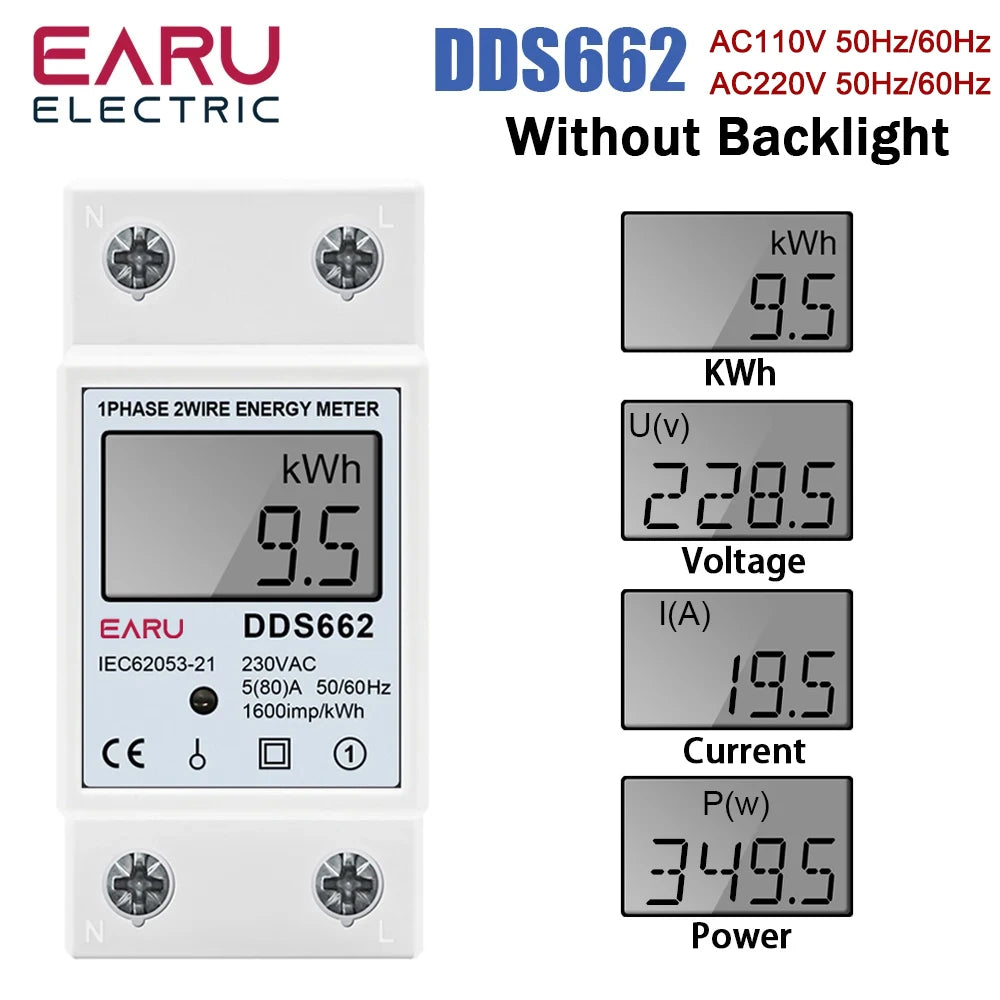

The meter is multifunctional display total Energy kWh, temporary Energy kWh, real Voltage, real Current, real Power by manual pressing.



Features:

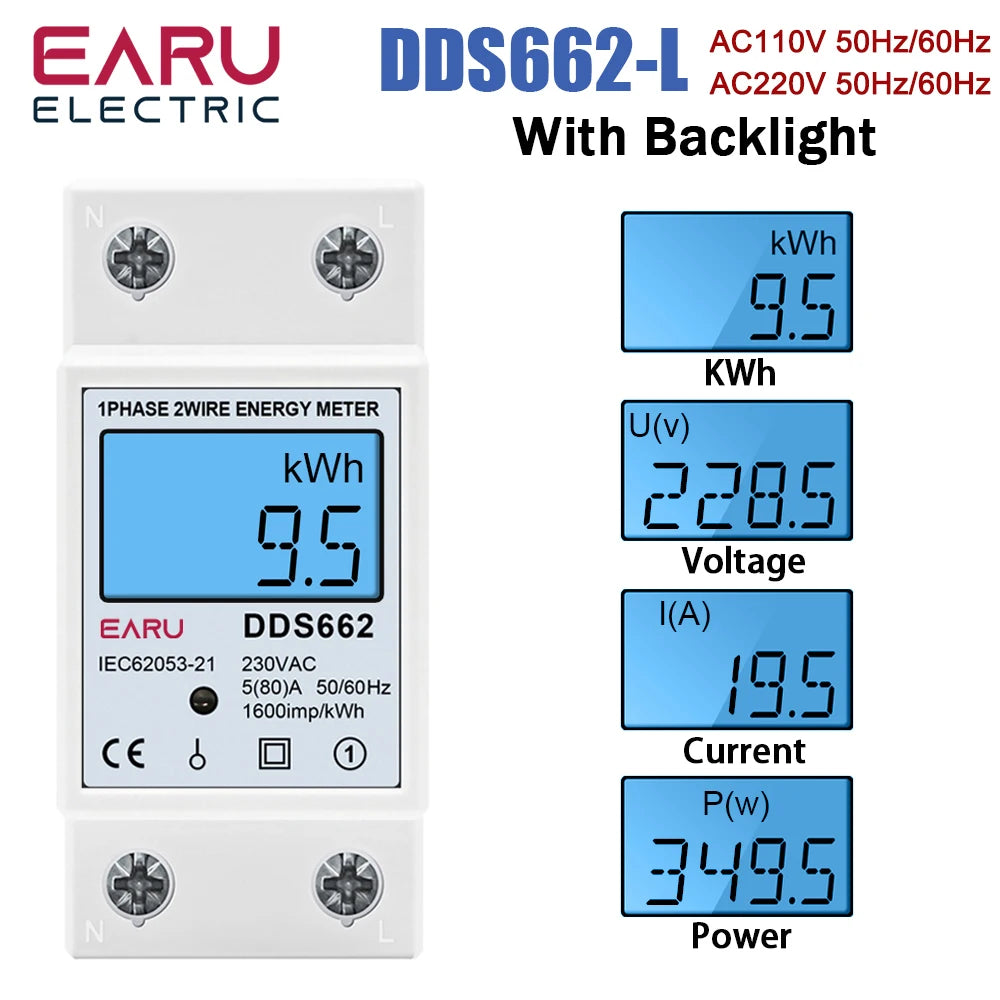

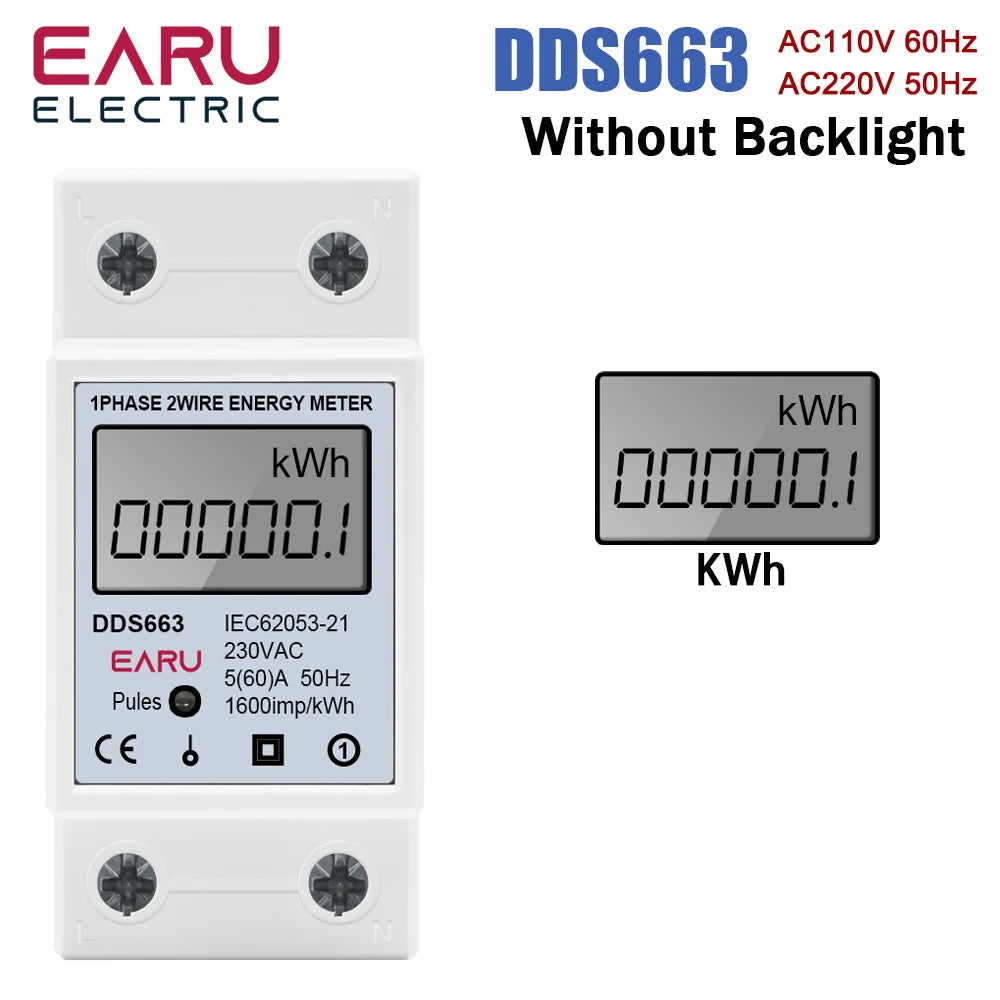

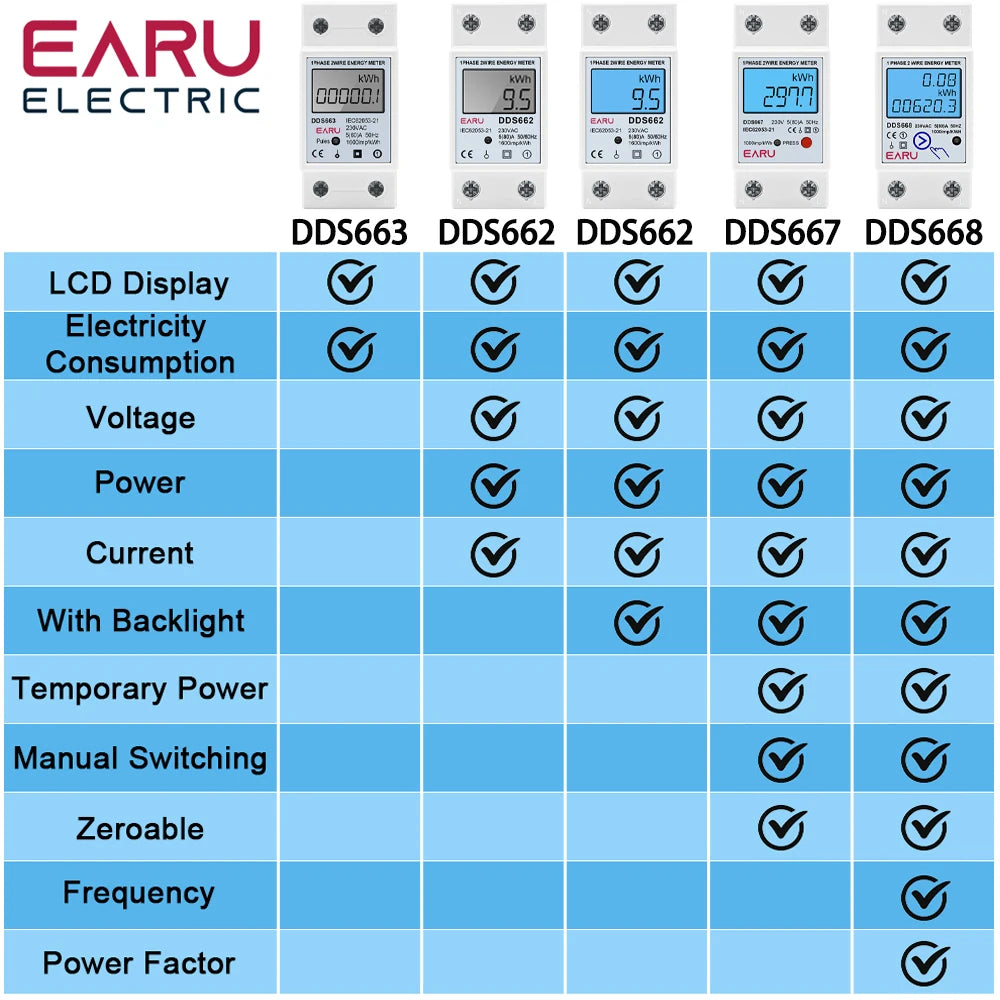

Suitable for DDS663, DDS662 DDS662-L：

Withoutbutton and Withoutreset function

NOTE:This Temporary kWh is not available RESET to be Zero . The Total kWh can not be Reset.



Features:

Suitable for DDS667, DDS668:

1、With button and With reset function

2、Hold the button for 6 seconds to Reset the temporary kWh

NOTE: This Temporary kWh is available RESET to be Zero . The Total kWh can not be Reset.

Features:

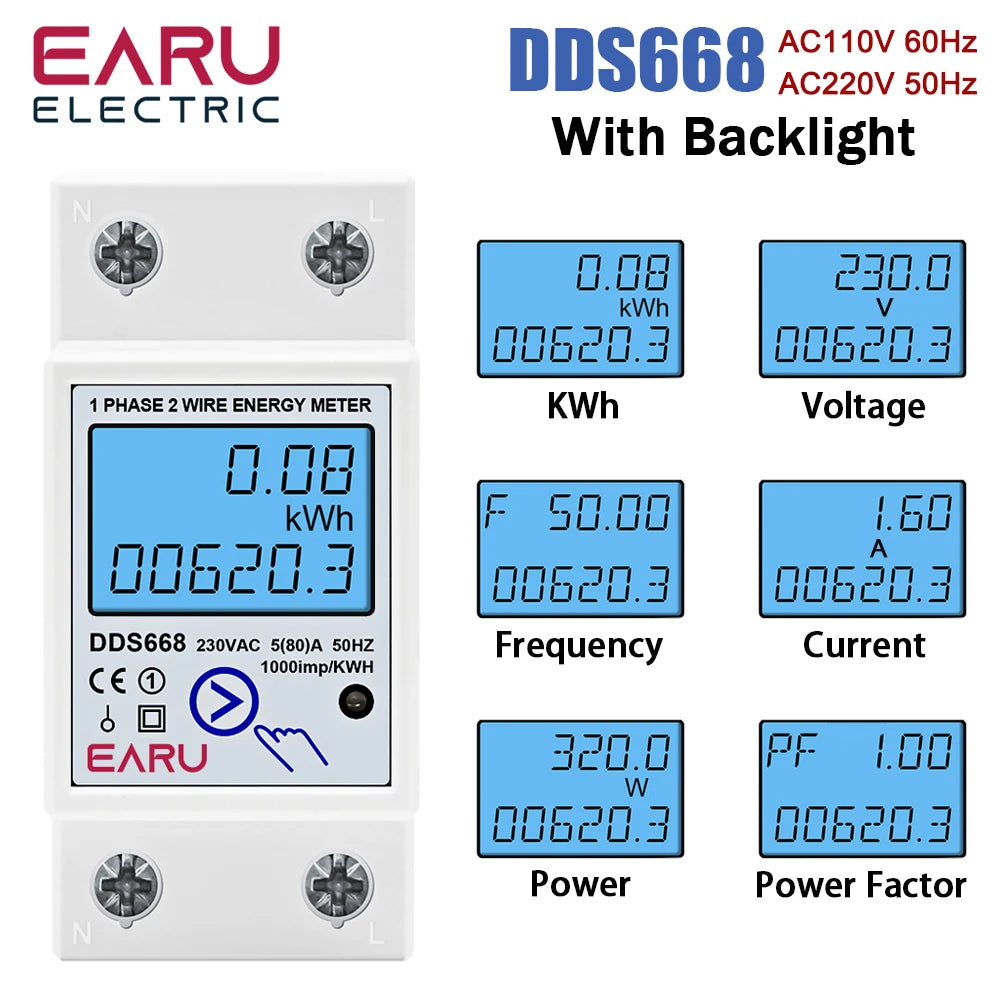

Suitable for DDS668:

With total and temporary electricity consumption

Always Display two values simultaneously, one of which inevitably displays power.
