LED Fun Alarm Clock DIY Electronic Soldering Kit Digital LED Display Module no cars

Regular price $3.43

ONLY LEFT

ONLY LEFT

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Condition: New

Type: Voltage Regulator

modname=ckeditor

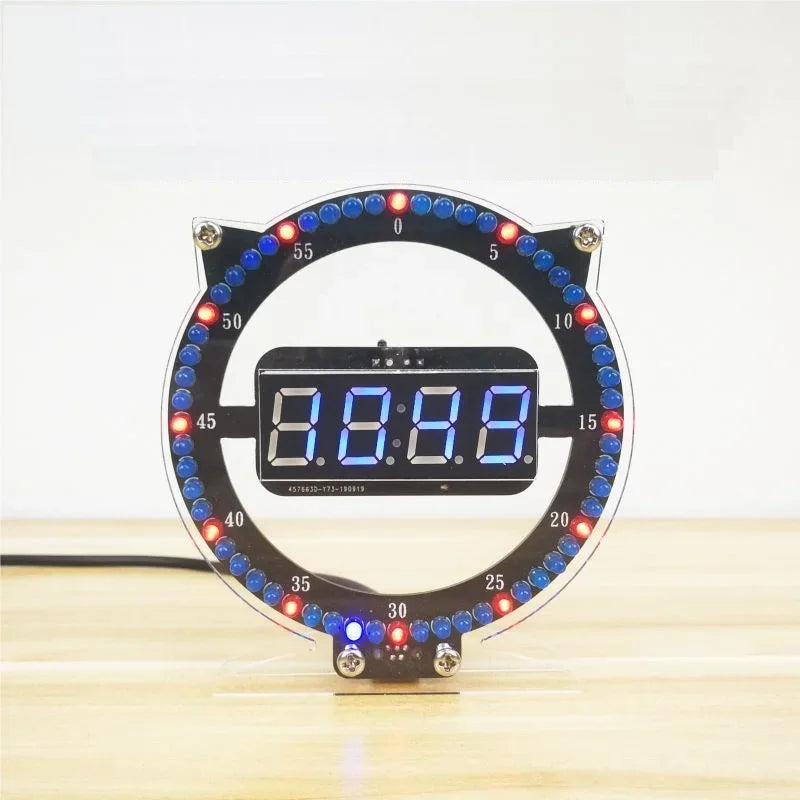

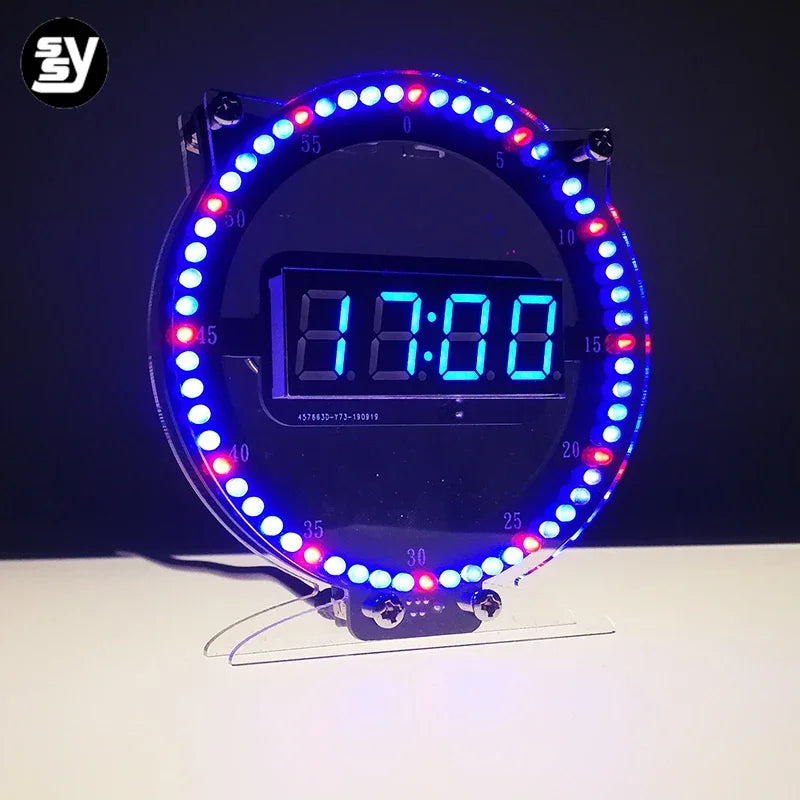

This is a DIY soldering practice project. You need to use a soldering iron to manually solder the electronic components. After completing the soldering and assembly, you will get a cool clock/small alarm clock

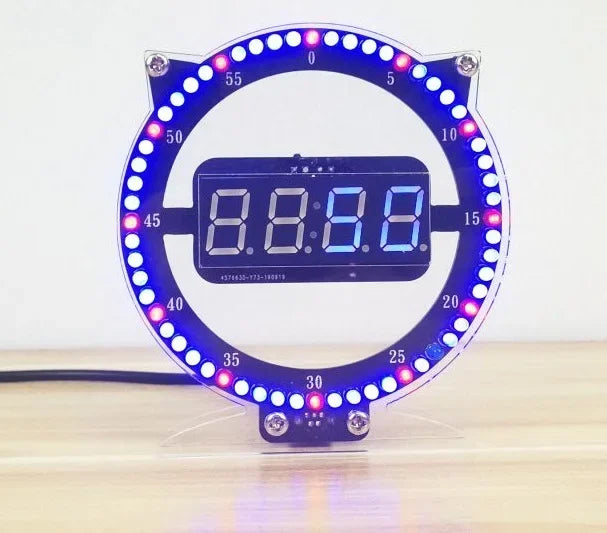

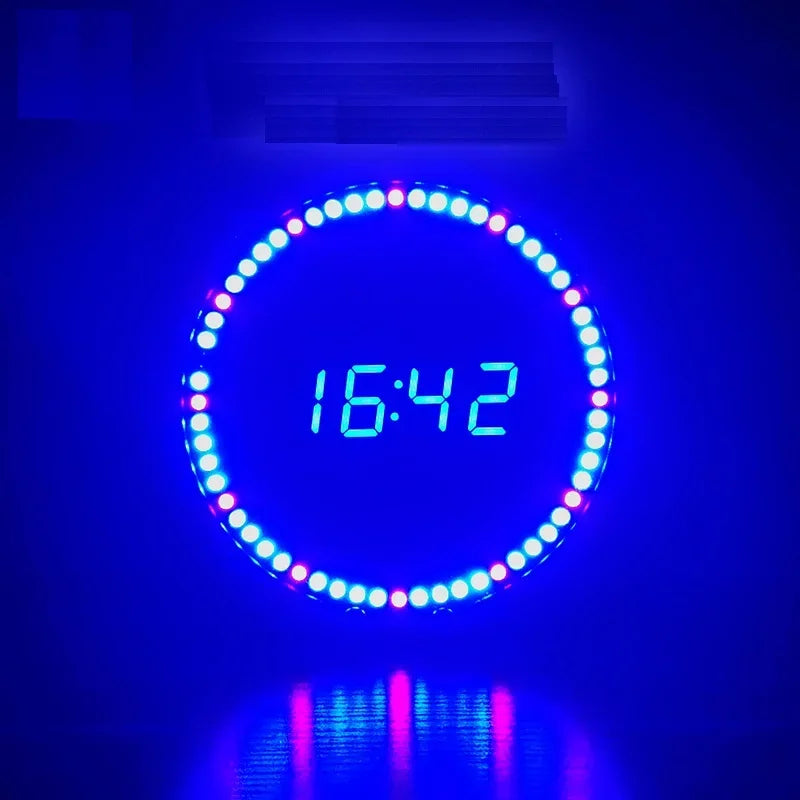

The electronic clock has an alarm function. You can set the alarm timing for hours, minutes, and seconds. As a clock, it has 13 kinds of exquisite and cool led animation effects, which simulate the movement of the clock

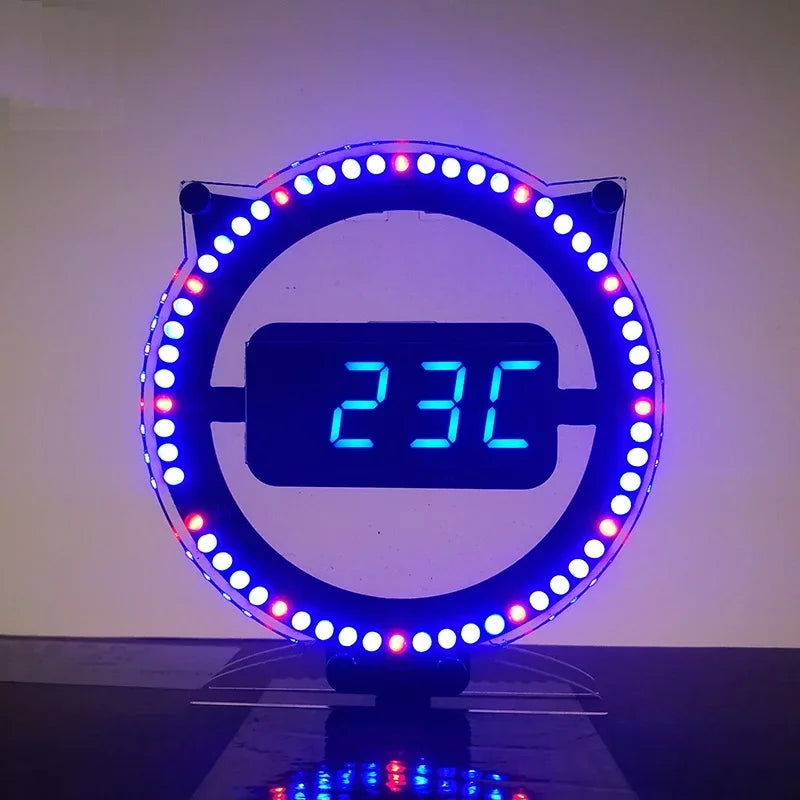

The electronic clock has a photoresistor and a temperature control sensor, which can be set to turn on/off the light control function and display/turn off the temperature
This is also a great gift choice for family or friends. They will definitely appreciate your hand-made heart. At the same time, parents can also instruct their children how to weld through the electronic welding kit

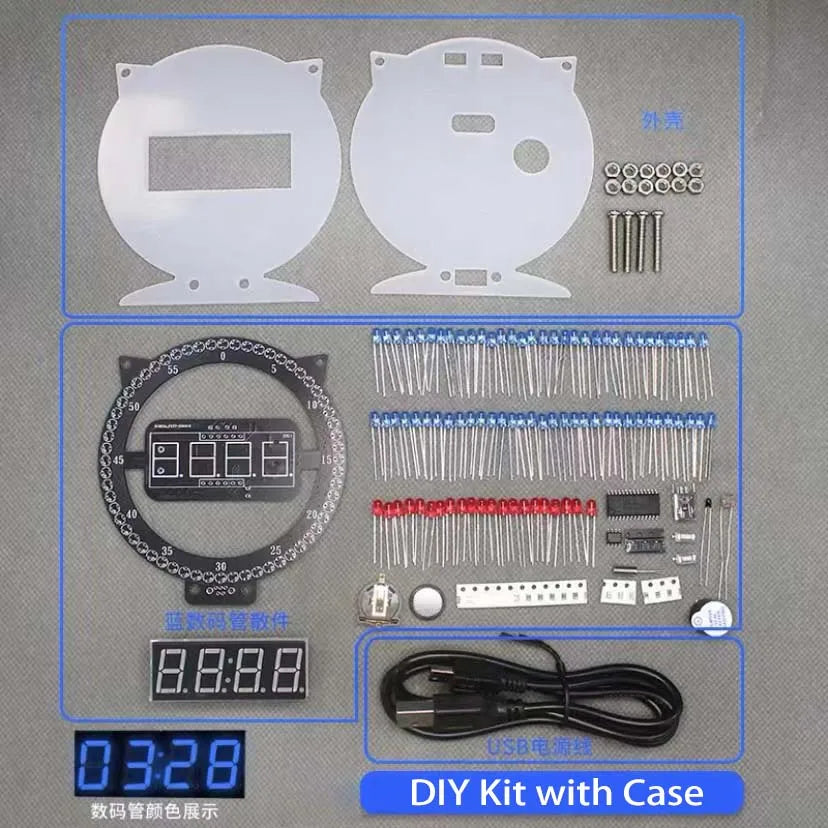

What You Get: 1 x Electronic Alarm Clock Soldering Kit




Case and battery Not Included.

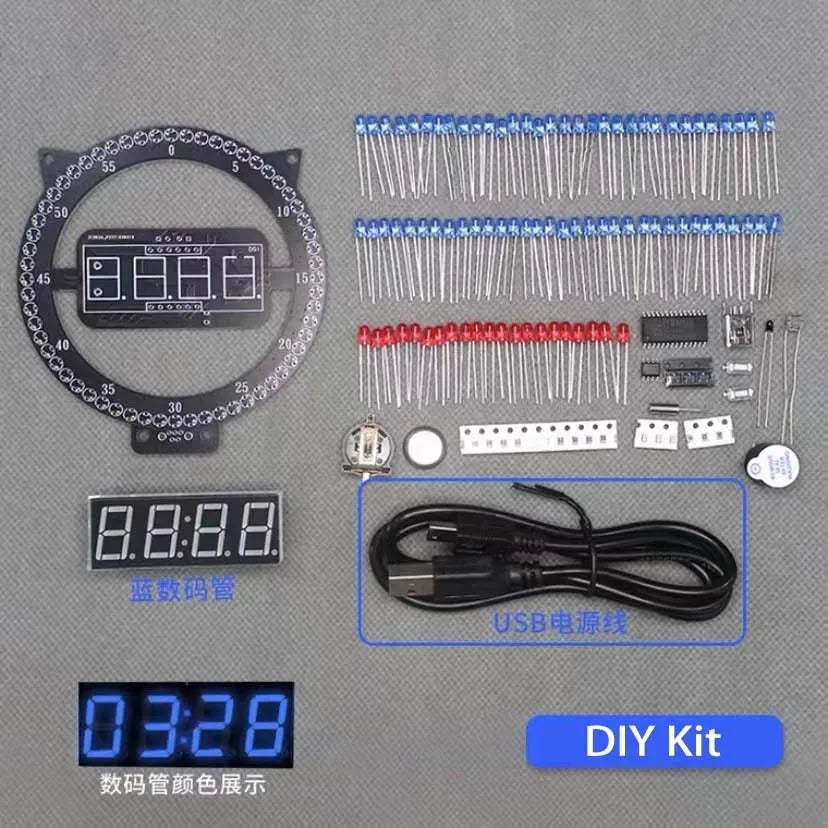

Kitten clock component list

Name

Package

Position Of Welding

Quantity

STC15W408AS

SOP28

U1

1

DS1302

SOP8

U2

1

1K resistance

805

R3-R11

10

10K resistance

805

R1, R2

2

10pf ceramic capacitor

805

C1, C2

2

32.768KHz crystal oscillator

Plug-in

Y1

1

S9012

SOT-23

Q1

1

Photoresistance

Plug-in

Photosensitive

1

Thermistor

Plug-in

Thermal

1

buzzer

Plug-in

U3

1

CR1220 battery holder

Patch

BT1

1





T-type power socket

Plug-in

J1

1

3*6mm touch button

Patch

Setting, adding keys

1

Digital Tube

Plug-in

DS1

1

3mm red red LED

Plug-in


15

3mm blue hair blue LED

Plug-in


55

T type power cord



1
