SPECIFICATIONS

Brand Name: CNYANNUA

Origin: Mainland China

DIY Supplies: ELECTRICAL

Measuring Energy Range: 0.1-99999.9 KWH

Display Type: LCD

Model Number: DDS1108

Certification: none

Power Supply: AC

Phase: single phase

Rated Voltage: 220V

Dimensions: 36*66*79mm

Operating Temperature: -20℃+55℃

Accuracy Class: 1

Max Operating Current: 50A - 79A

Choice: yes

semi_Choice: yes

Please note that this only measures KWH

Describe

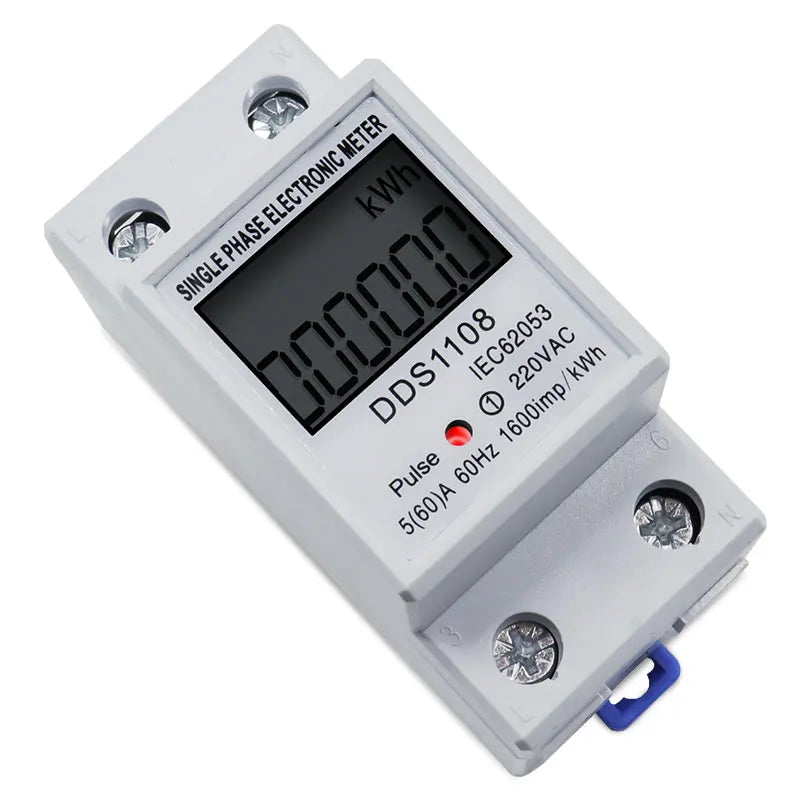

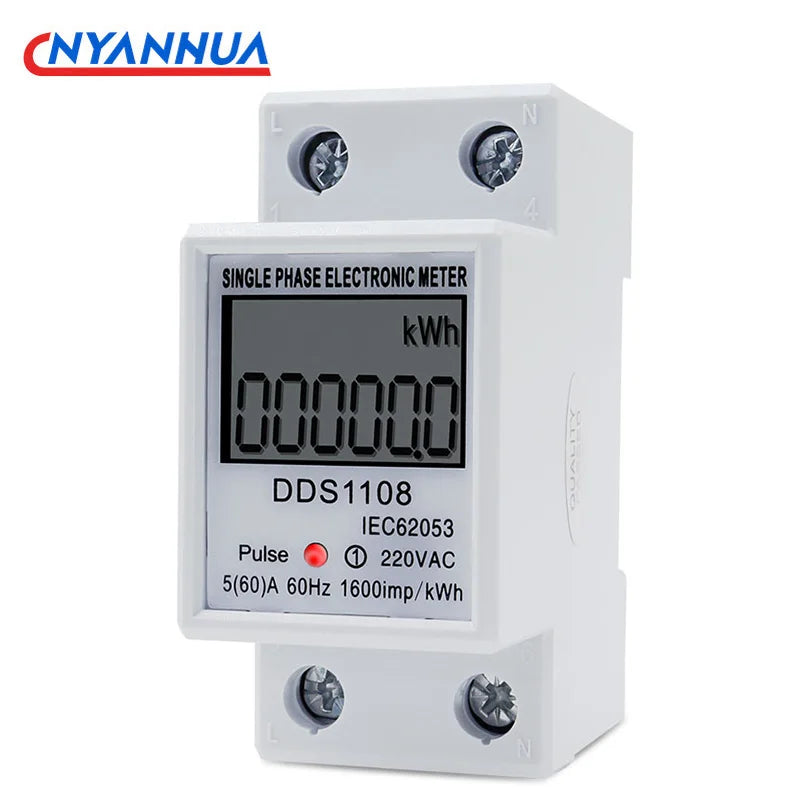

Single phase electronic electric measurement module is the latest product of our factory, which is used to measure single-phase AC active electric measurement module with rated frequency of 50Hz and rated voltage of 220V.

1. This product adopts large-scale integrated circuits and SMT technology dedicated to measuring electrical energy to ensure measurement accuracy and reliability.

2. Voltage signal power supply, no auxiliary power supply is required.

3. Save the accumulated value of electrical energy when power is off.

4. Beautiful and compact appearance, light weight, excellent and reliable performance.

5.5+1 bit wide temperature LCD display.

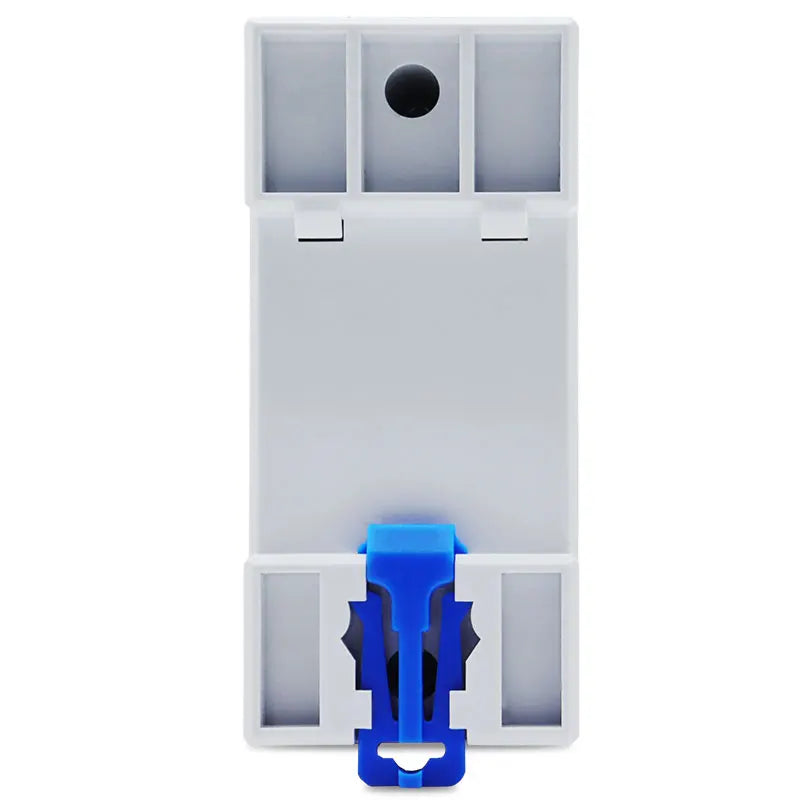

6.35mm standard guide rail installation method

7. The overall power consumption is less than 2W/5VA.

Voltage: 220V

Current: 5 (60) A

Precision: 1.0

Package included

1 × KWH Meter
