FNIRSI 2C53P Touch Screen Digital Oscilloscope+Multimeter+Signal Generator 3IN1 Dual Channel 50MHZ Automatic Osciloscópio Tools

Regular price $94.50

ONLY LEFT

ONLY LEFT

SPECIFICATIONS

Brand Name: FNIRSI

FNIRSI Model: 2C53P

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display resolution: 480*272

Digital Channels: 2

Model Number: 2C53P

IS Battery Demountable: Yes

Display Size: 3.0 - 4.9 Inches

Certification: CE

Real Time Sampling Rate: 250MS/s

Band Width: 50Mhz

Time base range: 10ns/div - 10s/div

Vertical Sensitivity: 10mv/div - 10v/div

Input Impedance: 1MΩ

Peak Voltage: ±400V

Input Coupling: AC/DC

Bandwidth limit: Support 20MHz limit

Trigger Mode: Auto/Normal/Single

Probe Attenuation Coefficient: 1x/10x

Waveform Display Mode: YT/XY/scroll

Different Waveform Output Frequencies: Sine wave: 10MHz, other waveforms 5MHz

Waveform Frequency: 0-10MHz

Waveform Amplitude: 0.1V-3.0V

Square Wave Duty Cycle: 0-100%

DC Voltage: 1.9999V/19.999V/199.99V/1000.0V

AC Voltage: 1.9999V/19.999V/199.99V/750.0V

DC Current: 19.999mA/199.99mA/1.9999A/9.999A

AC Current: 19.999mA/199.99mA/1.9999A/9.999A

Resistance: 1.9999KΩ/199.99Ω

Capacitance: 9.999mF/99.99mF

Temperature: -55~1300℃ / -67~2372℉

Diode/ON-OFF: YES



FNIRSI-2C53P is a three-in-one dual-channel model launched by FNIRSI with comprehensive functions and high practicality, targeting people in the maintenance and R&D industries.

Word oscilloscope. This device has three major functions: oscilloscope, multimeter and signal generator. The oscilloscope adopts FPGA+MCU+ADC hardware architecture and has

It has a sampling rate of 250MS/s, an analog bandwidth of 50Mhz, a built-in high-voltage protection module, and supports a maximum peak voltage measurement of ±400V; supports waveform screenshots.

Save and view to facilitate secondary analysis. The multimeter function is 4 and a half digits and 19999 points of true RMS, supporting AC and DC voltage and current measurements, capacitance, resistance,

With measuring functions such as diode, continuity, temperature, etc., it is an ideal multi-functional instrument whether used by professionals, factories, schools, enthusiasts or families. Inside

Set up a DDS function signal generator, which can output 12 kinds of function signals. The maximum output of the signal generator is 10MHz, with a step of 1Hz; output frequency, amplitude, and duty cycle

Adjustable. It uses a 4.3-inch 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery with a standby time of up to 4 hours. With small size

Provide users with more and stronger practical functions, while also having good portability.



Oscilloscope

Channel:Dual channel

Analog bandwidth:50MHz

Real-time sample rate:250MSa/s

Storage depth:Up to 64kByte

Input mpedance:1MΩ

Time base range:10ns/div - 10s/div

Vertical sensitivity:10mv/div - 10v/div

Vertical resolution8 bits

Maximum measured voltage:±400V

Probe:1x/10x

torage space:13

Bandwidth limitSupport 20MHz limit

Trigger mode:AUTO/Normal/Single

Trigger type:Rising edge, Falling edge

Trigger level range:8 cells (positive/negative)

Waveform display mode:XY/YT/Scroll

Coupling method:AC/DC

Measured data:Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width

Math alculations:1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT

Save waveform screenshot:Yes

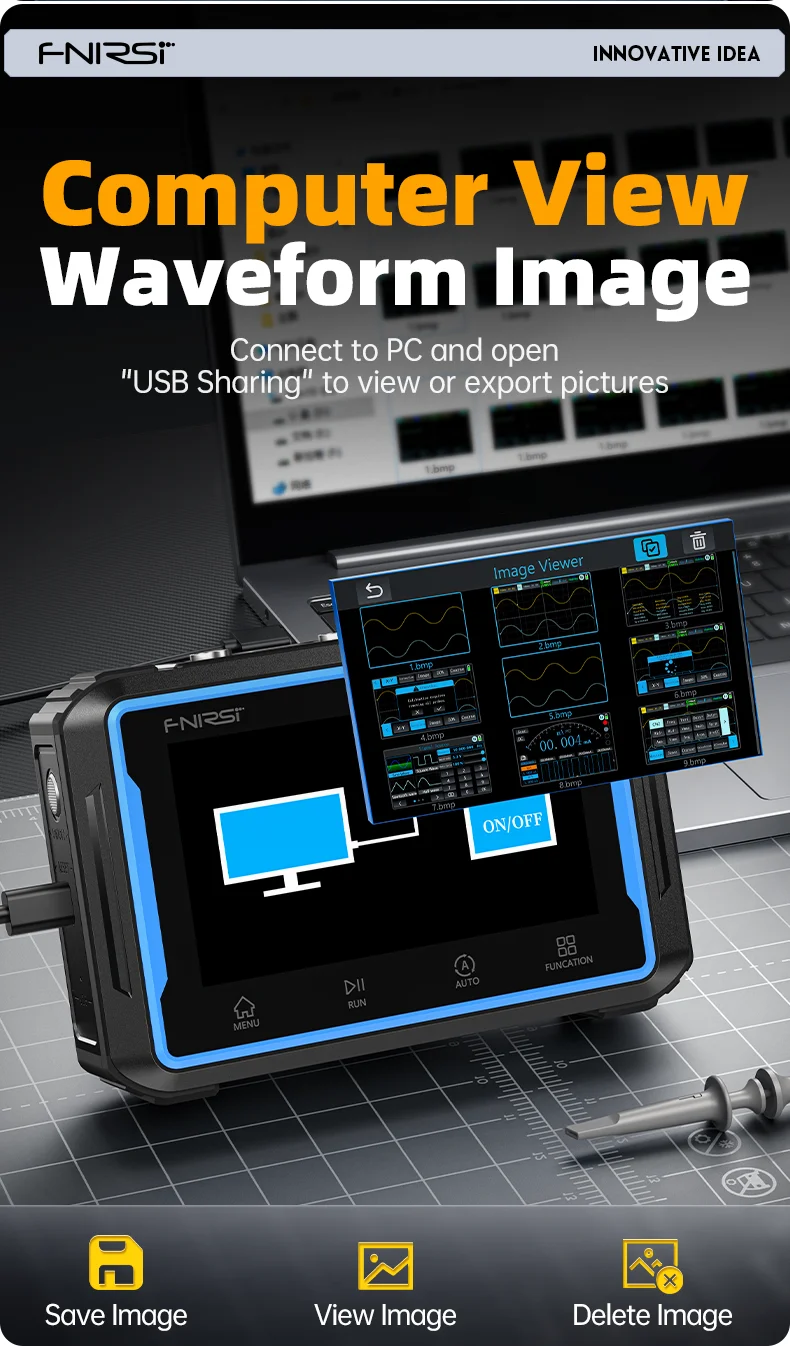

Export waveform images from computer:Yes

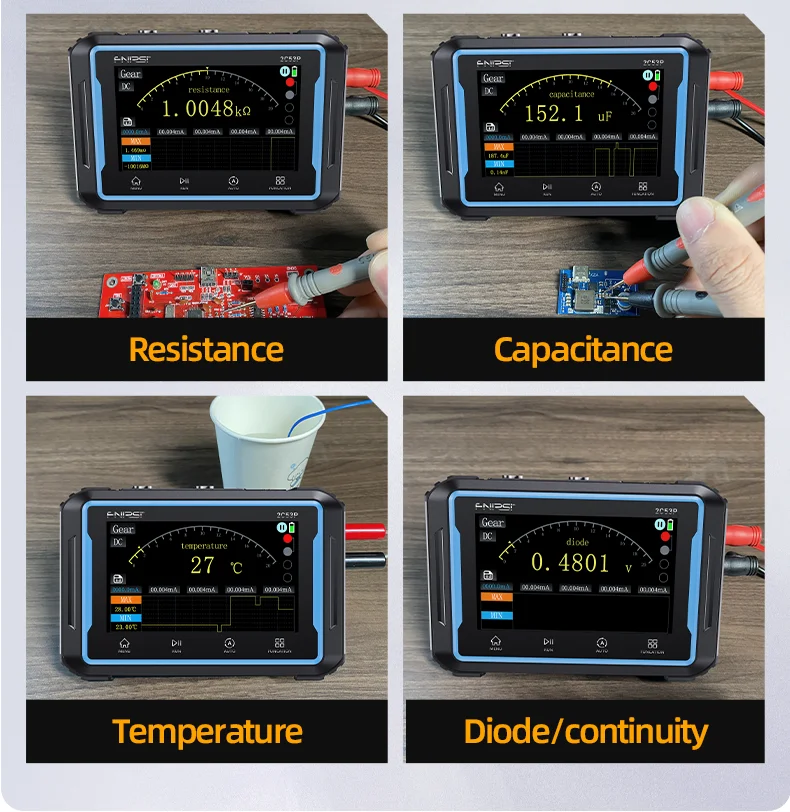

Multimeter

DC Voltage:1.9999V/19.999V/199.99V/1000.0V

AC voltage:1.9999V/19.999V/199.99V/750.0V

DC current:19.999mA/199.99mA/1.9999A/9.999A

AC current:19.999mA/199.99mA/1.9999A/9.999A

Resistance:19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω

Capacitance:999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF

Temperature:(-55~1300℃)/(-67~2372℉)

Diode:Yes

Continuity test:Yes

Signal Generator

Channel:Single channel

Frequency:0-10MHz(Sine wave: 10MHz, other waveforms 5MHz)

Amplitude:0.1V-3.0V

Square wave duty cycle0-100%

Signal type:sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse

Basic Parameters

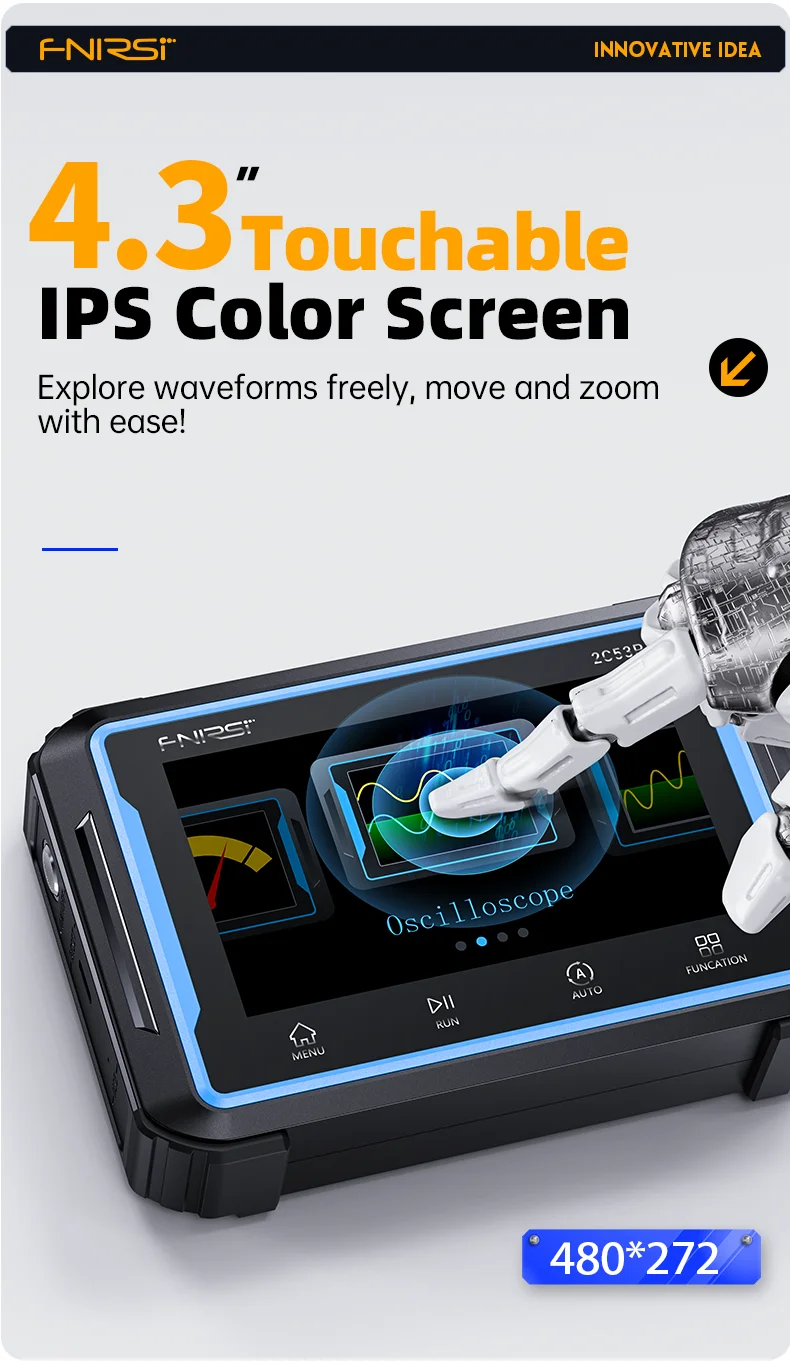

Screen size & resolution:4.3 Inch (480*272 pixels)

Screen material:Surface tempered glassSurface tempered glass + touch screen made of glass GLASS + IPS color screen

BacklightBacklight brightness can be set

Power supply:TYPE-C(5V/2A)

Battery:4000mAh lithium battery

Language:Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인

Product size:about 145x98x35mm

Product net weight:about 360g

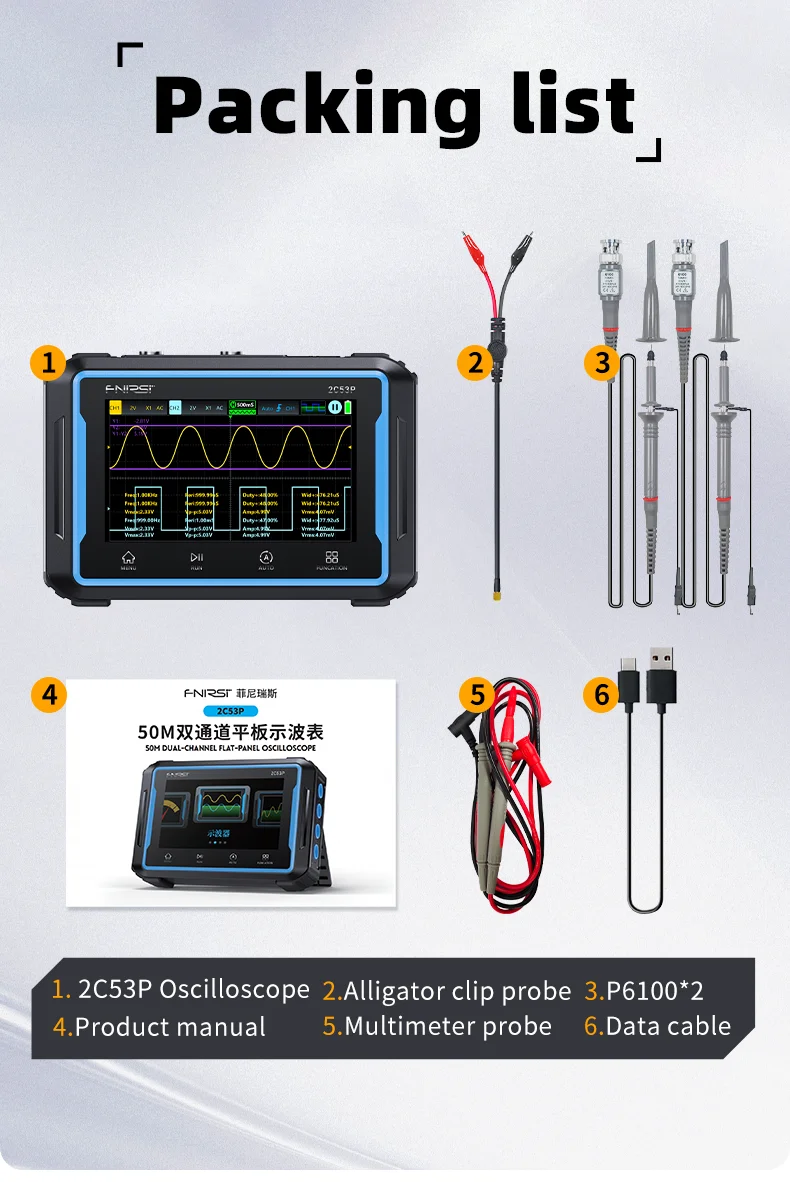

2C53P Standard

1. 2C53P(2CH Touchable Oscilloscope Multimeter 3in1)*1

2. P6100 Probe *2

3. Multimeter probe *1

4. Alligator clip probe *1

5. Data cable *1

6. Product Manual *1
